Audi Q5. Special Tools

Special tools and workshop equipment required

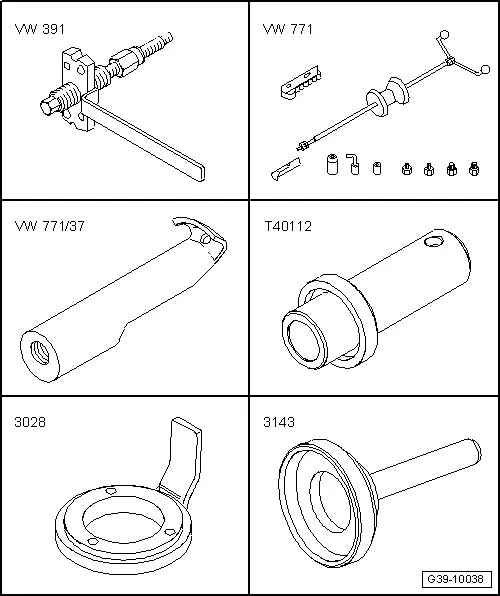

  • Puller -VW391-
  • Slide Hammer-Complete Set -VW771-
  • Additional Part for VW771 -VW771/37-
  • Thrust Piece -T40112-
  • Retainer -3028-
  • Seal Driver-Frt Wheel Bearing -3143-

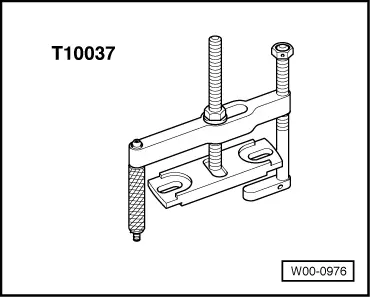

  • Puller -T10037-

Audi Q5. W00-0976

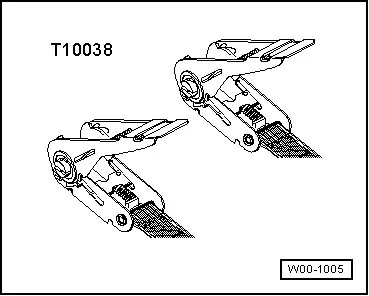

  • Tensioning Strap -T10038-

Audi Q5. W00-1005

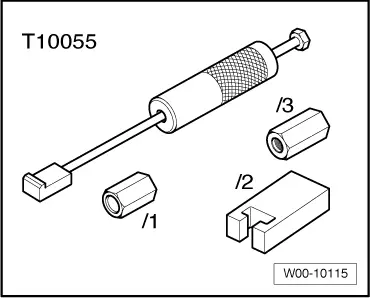

  • Puller -T10055-

Audi Q5. W00-10115

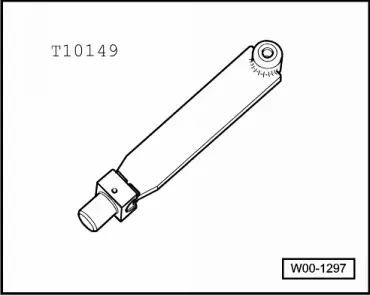

  • Wheel Hub Support -T10149-

Audi Q5. W00-1297

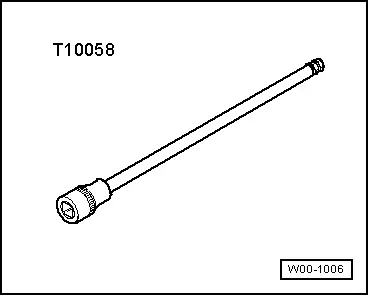

  • Hex Ball Socket -T10058-

Audi Q5. W00-1006

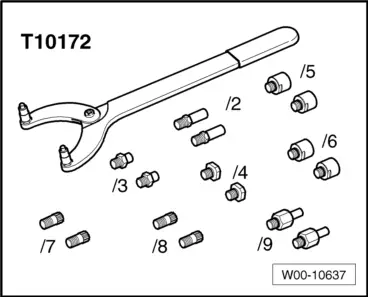

  • Counterhold Tool Touareg V10 -T10172-
  • Adapter -T10172/5- (M8 Bolts)
  • Adapter -T10172/6- (M10 Bolts)

Audi Q5. W00-10637

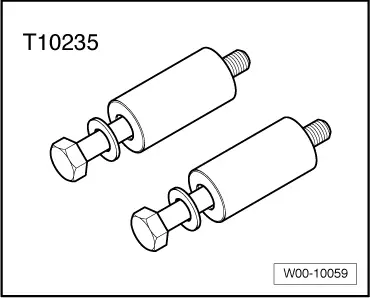

  • Adapter -T10235-

Audi Q5. W00-10059

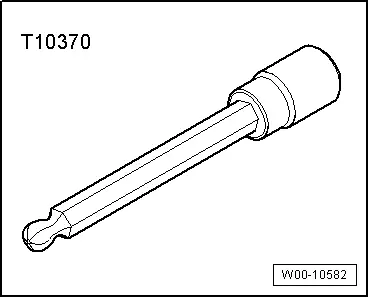

  • Socket 4 mm -T10370-

Audi Q5. W00-10582

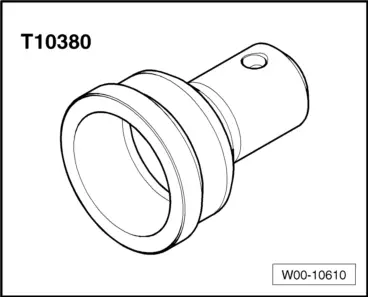

  • Thrust Piece -T10380-

Audi Q5. W00-10610

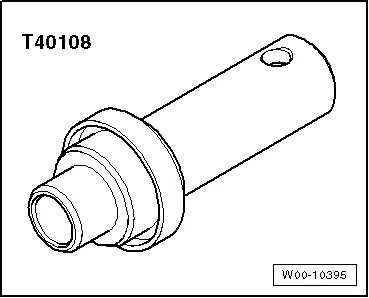

  • Thrust Piece -T40108-

Audi Q5. W00-10395

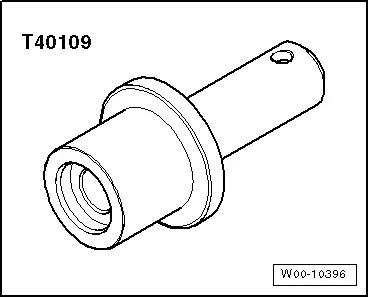

  • Thrust Piece -T40109-

Audi Q5. W00-10396

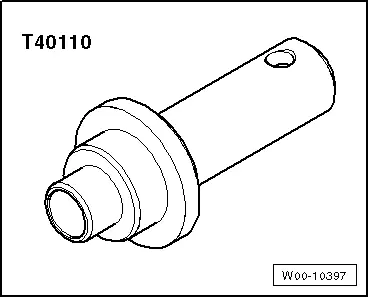

  • Thrust Piece -T40110-

Audi Q5. W00-10397

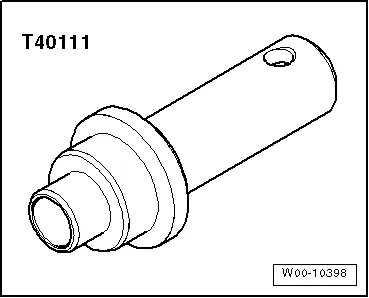

  • Thrust Piece -T40111-

Audi Q5. W00-10398

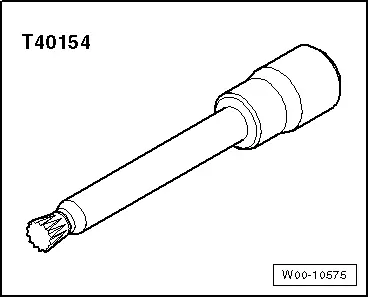

  • Socket XZN 12 -T40154-

Audi Q5. W00-10575

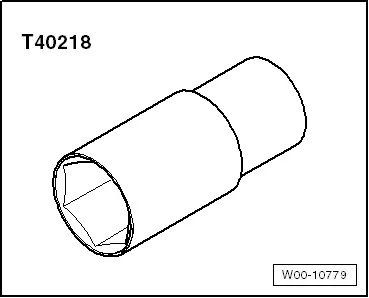

  • Socket 27 mm -T40218-

Audi Q5. W00-10779

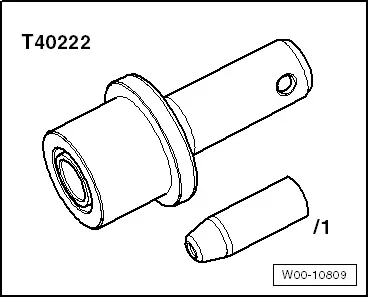

  • Assembly Tool -T40222-
  • Assembly Tool -T40222/1-

Audi Q5. W00-10809

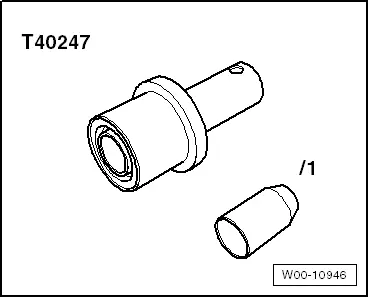

  • Assembly Tool -T40247-
  • Guide Sleeve -T40247/1-

Audi Q5. W00-10946

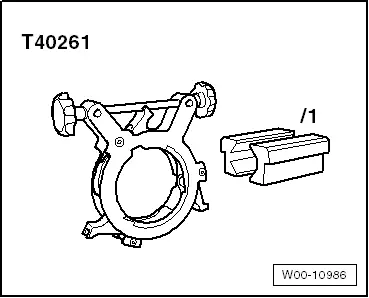

  • Flanging Tool -T40261-

Audi Q5. W00-10986

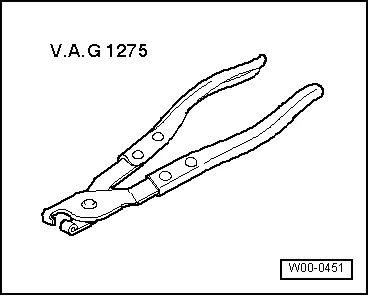

  • Hose Clamp Pliers -VAG1275-

Audi Q5. W00-0451

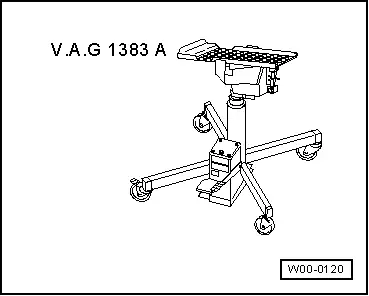

  • Engine-Transmission Jack -VAG1383 A- with Universal Transmission Support -VAG359/2-.

Audi Q5. W00-0120

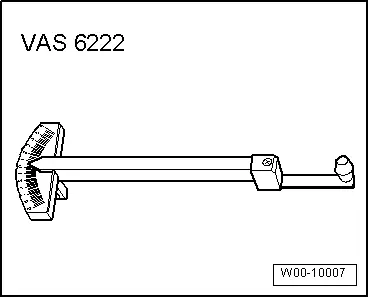

  • Friction Gauge -VAS6222-

Audi Q5. W00-10007

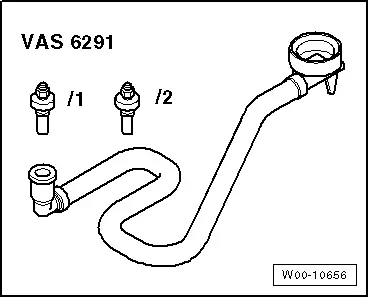

  • Charging Device for Haldex Coupling 2 -VAS6291- or Charging Device for Haldex Coupling 2 -VAS6291A-

Audi Q5. W00-10656

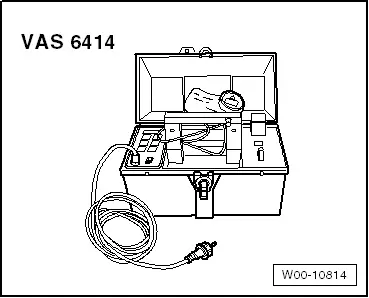

  • Inductive Heater -VAS6414-

Audi Q5. W00-10814

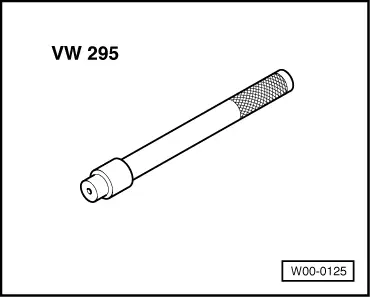

  • Needle Bearing Drift -VW295-

Audi Q5. W00-0125

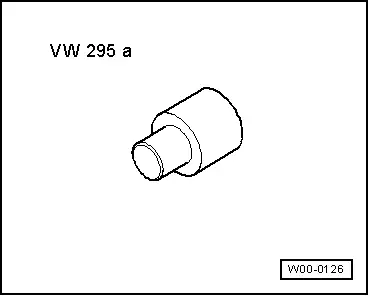

  • Needle Bearing Drift -VW295A-

Audi Q5. W00-0126

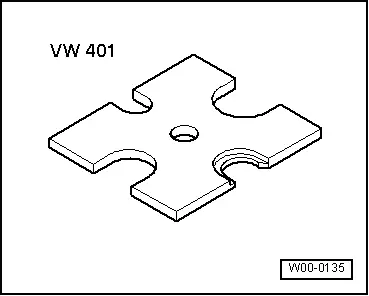

  • Thrust Plate -VW401-

Audi Q5. W00-0135

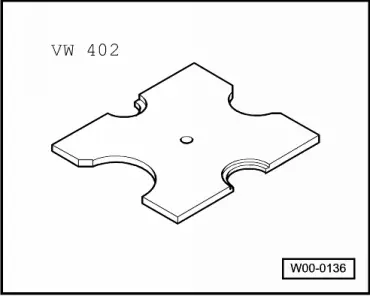

  • Thrust Plate -VW402-

Audi Q5. W00-0136

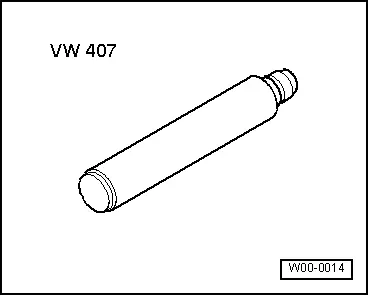

  • Punch -VW407-

Audi Q5. W00-0014

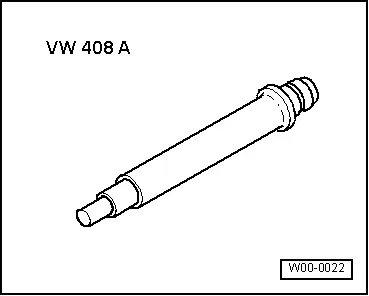

  • Punch -VW408A-

Audi Q5. W00-0022

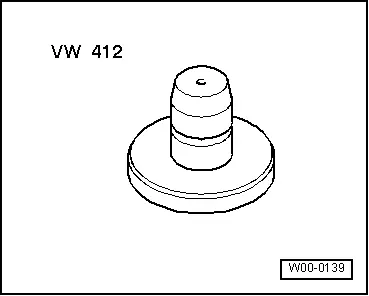

  • Punch -VW412-

Audi Q5. W00-0139

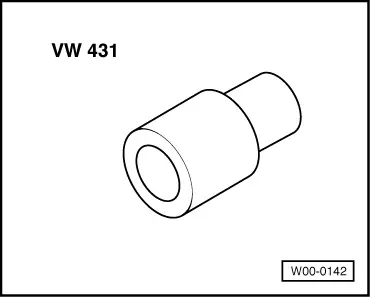

  • Thrust Pad 16.5/28 mm Diameter -VW431-

Audi Q5. W00-0142

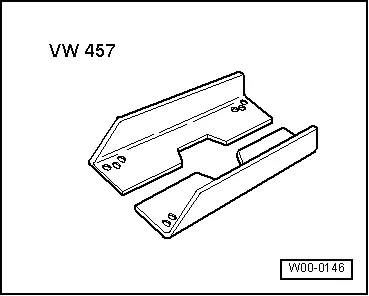

  • Support Channels -VW457-

Audi Q5. W00-0146

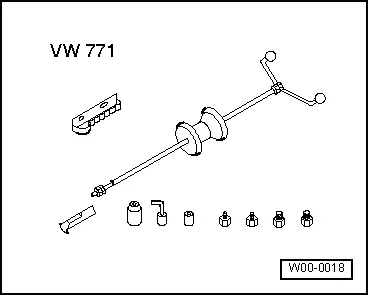

  • Slide Hammer-Complete Set -VW771-

Audi Q5. W00-0018

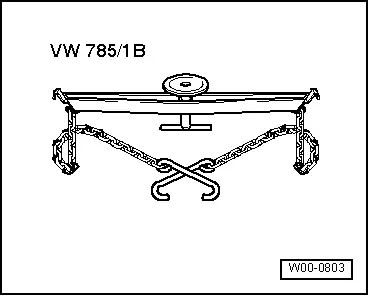

  • Transmission Support -VW785/1B-

Audi Q5. W00-0803

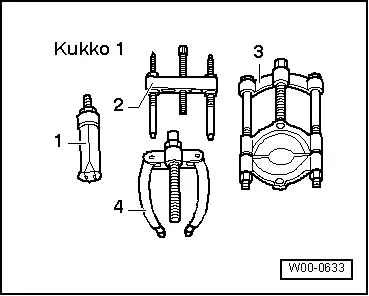

  • -3-Separating Tool 22 to 75 mm, for example, Kukko Separating Tool 12-75 mm -17/1-
  • -3-Kukko Separating Tool 22-115 mm, for example, Kukko Separating Tool 22-115 mm -17/2-

Audi Q5. W00-0633

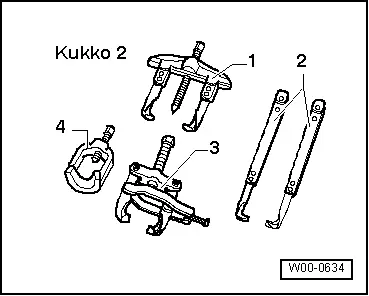

  • -1-2-Arm Puller Kukko -20/10-

Audi Q5. W00-0634

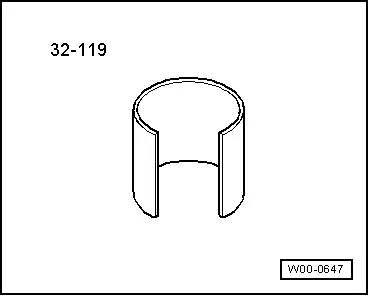

  • Sleeve -32 - 119-

Audi Q5. W00-0647

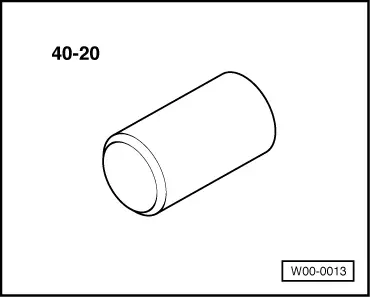

  • Sleeve -40 - 20-

Audi Q5. W00-0013

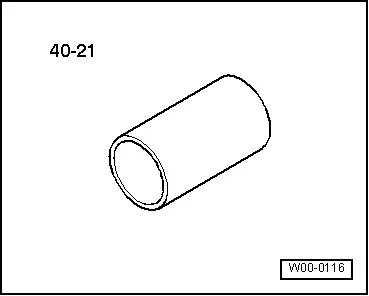

  • Sleeve -40 - 21-

Audi Q5. W00-0116

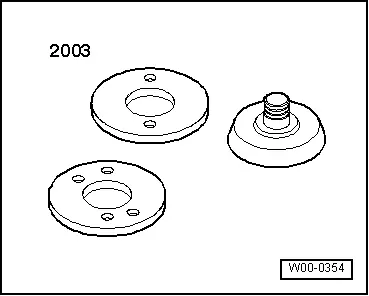

  • Seal Press Sleeve -2003/1- from the Seal Installer -2003-

Audi Q5. W00-0354

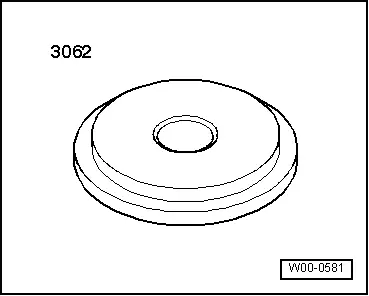

  • Thrust Pad -3062-

Audi Q5. W00-0581

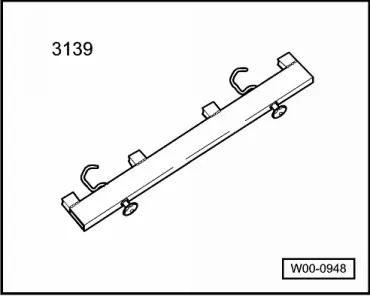

  • Alignment Fixture-4W Dr. Shaft -3139-

Audi Q5. W00-0948

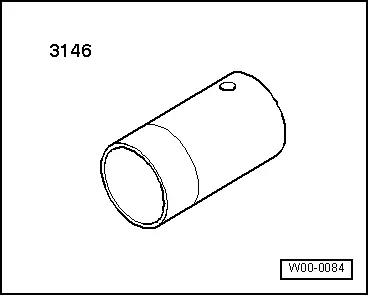

  • Press Support-R and R Ball Joints -3146-

Audi Q5. W00-0084

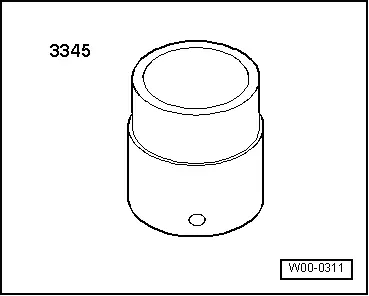

  • Press Tube -3345-
  • Not illustrated:
  • Thrust Piece -T40221-
  • Oil Filling Adapter -VAS6291/2- or Oil Filling Adapter -VAS6291/3-

Audi Q5. W00-0311

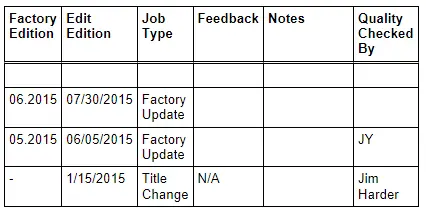

Revision History
