Audi Q5: Brake Lines

Separating Points

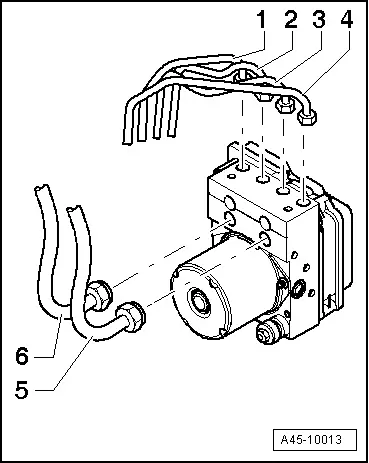

Lines to hydraulic assembly

- Tighten hex collar nuts -1- through -4- to 14 Nm.

- Tighten hex collar nuts -5- and -6- to 14 Nm.

Audi Q5. A45-10013

Brake hose on brake caliper to front axle

- Item -1- brake hose, ensure retaining tabs are seated correctly in bracket.

- Item -2- retaining spring.

- Tighten brake pipe line -3- to 14 Nm.

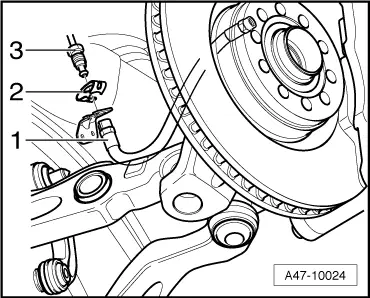

- Brake line -1-

- Item -2- retaining spring.

Audi Q5. A47-10024

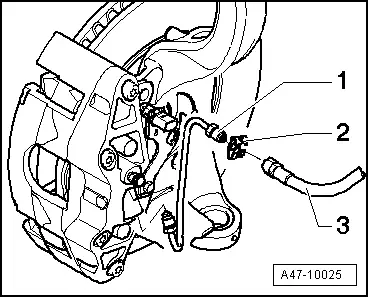

- Item -3- - brake hose, ensure retaining tabs are seated correctly in bracket.

Audi Q5. A47-10025

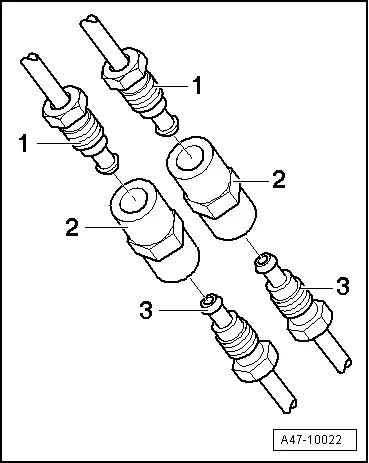

Brake line connection in wheel housing to front axle

- Item -1- brake pipe line, 14 Nm tightening specification.

- Item -2- intermediate piece.

- Item -3- brake pipe line, 14 Nm tightening specification.

Audi Q5. A47-10022

Brake Line Routing

  • Brakes and brake lines are delivered as ready-to-install replacement parts.
  • Secure brakes and brake lines at original fastening points when installing.

  WARNING

There is the risk of an accident.

Make sure the brakes are working correctly before driving the vehicle.

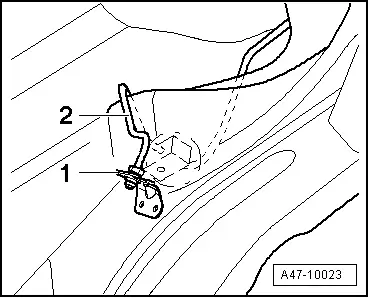

Brake line routing in wheel housing to front axle

- Item -1- brake hose bracket.

- Tighten brake line -2- to 14 Nm.

Audi Q5. A47-10023

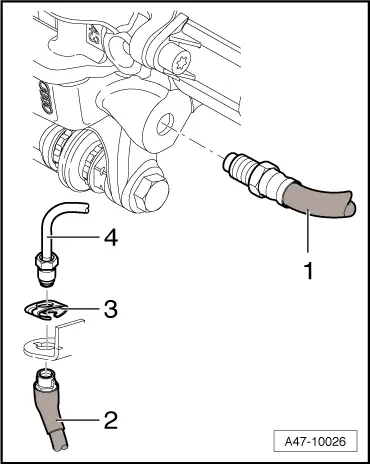

Brake line routing to rear axle

- Tighten the -1- brake hose in the brake caliper to 20 Nm.

- Item -2- brake hose bracket, ensure retaining tabs are seated correctly in bracket.

- Item -3- - retaining spring

- Item -4- - brake line, 14 Nm.

Audi Q5. A47-10026
