Audi Q5: Hydraulic System

Brake Fluid General Information

  WARNING

  • Brake fluid is poisonous. NEVER siphon brake fluid with your mouth!
  • Wash off any brake fluid that comes into contact with the skin with a lot of water.
  • If it contacts the eyes, wash out the eye and see a doctor.
  • Brake fluid must never come into contact with fluids containing mineral oils (oil, gas, cleaning solutions). Mineral oil damages the plugs and rubber grommets in the brake system.
  • Brake fluid is hygroscopic, meaning that it absorbs moisture from the surrounding air, and must therefore be stored in air-tight containers.
  • When bleeding, brake fluid that has been flushed through must not be reused and must be disposed of properly.
  • Observe waste disposal regulations!
  • Due to its corrosive effect, brake fluid cannot come in contact with paint or painted parts.

Even the smallest amount on a seal or boot can cause the part to change and thereby affect the function of the brake system. The results of an unclean brake system first show themselves months later, causing increased repair costs, especially on vehicles with ABS.

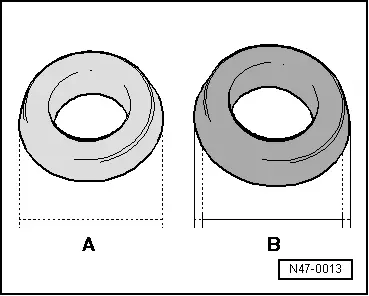

A = Boot - Original size

B = Boot - Swollen through contact with mineral oil

It is implied by the previously mentioned points that:

  • Keep containers of brake fluid closed securely. This is to make sure that no oil, dirt or cleaning materials and no humidity can enter the container.
  • Store containers of brake fluid away from oil (even hydraulic oil) and cleaning fluids to prevent an accidental mixing of both fluids or even filling the brake system with the wrong fluid.

  Note

  • Use new brake fluid only.
  • Wash off any spilled brake fluid with plenty of water.

Audi Q5. N47-0013

Hydraulic System, Pre-Bleeding

  WARNING

  • Brake fluid is poisonous. NEVER siphon brake fluid with your mouth!
  • Wash off any brake fluid that comes into contact with the skin with a lot of water.
  • If brake fluid comes in contact with the eyes, wash out the eye(s) and see a doctor.

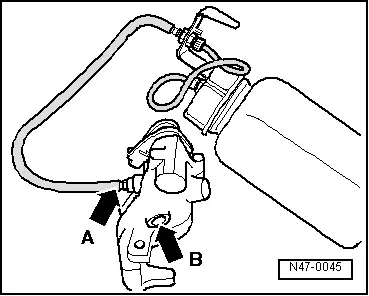

- Position brake caliper during pre-bleed procedure as shown in the illustration.

- Open the bleed screw -arrow A- and using a commercially available bleeder bottle, fill with brake fluid until brake fluid with no bubbles flows from the threaded hole (brake hose connection) -arrow B-. Close the bleeder screw.

Audi Q5. N47-0045

Hydraulic System, Bleeding

Hydraulic System, Bleeding with Brake Charger/Bleeder Unit

Special tools and workshop equipment required

  • Brake Charger/Bleeder Unit -VAS5234- with Brake Bleeder Adapter -VAS5234/1-

Procedure

  WARNING

  • Brake fluid is poisonous. NEVER siphon brake fluid with your mouth!
  • Wash off any brake fluid that comes into contact with the skin with a lot of water.
  • If brake fluid comes in contact with the eyes, wash out the eye(s) and see a doctor.

  Note

If there are two bleeder screws per brake caliper, first bleed the inner bleeder screw and then the outer.

  • Tightening specifications. Refer to → Chapter "Overview - Front Brakes, 1LA, 1LJ, 1ZB and 1ZT".

- Connect the Brake Charger/Bleeder Unit -VAS5234- with Brake Bleeder Adapter -VAS5234/1-.

- Remove the cap -1- on each brake caliper bleed screw and connect the container bleed hose to the bleed screw.

Bleeding sequence

1 - Left front brake caliper

2 - Right front brake caliper

3 - Left rear brake caliper

4 - Right rear brake caliper

- Leave the bleed screw open, with container hose connected, until brake fluid flows out clear and free of air bubbles.

- Press brake pedal 5 times to assist bleeding procedure.

- Tighten the bleed screw, remove the bleed hose and connect put the cap on the bleed screw.

- Repeat the bleeding procedure in the specified sequence for the other brake calipers.

- Fill the brake fluid reservoir under consideration of brake pad wear up to the max marking and screw on the fuel cap.

- Start the engine and check the brake pedal travel and pressure.

- If the pedal travel is too long, check the brake system for leaks and repeat the bleeding procedure, if necessary.

- After bleeding brake system, perform zero adjustment on Brake Pressure Sensor 1 -G201-. Refer to Vehicle Diagnostic Tester.

A road test must be performed after bleeding. During this, at least one ABS regulation must be performed at all four wheels!

Changing the brake fluid. Refer to →  Brake Fluid: Replacing.

  WARNING

There is the risk of an accident.

Make sure the brakes are working correctly before driving the vehicle.

Audi Q5. N01-10746

Hydraulic System, Bleeding without Brake Charger/Bleeder Unit

Procedure

  WARNING

  • Brake fluid is poisonous. NEVER siphon brake fluid with your mouth!
  • Wash off any brake fluid that comes into contact with the skin with a lot of water.
  • If brake fluid comes in contact with the eyes, wash out the eye(s) and see a doctor.

  Note

If there are two bleeder screws per brake caliper, first bleed the inner bleeder screw and then the outer.

  Note

Make sure that the brake fluid reservoir is always filled.

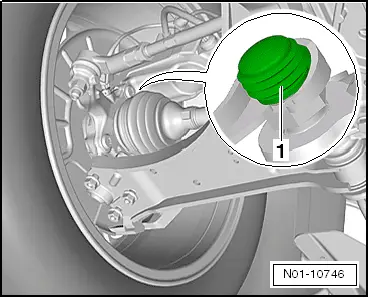

- Remove the cap -1- on each brake caliper bleed screw and connect the container bleed hose to the bleed screw.

Audi Q5. N01-10746

Bleeding sequence

1 - Left front brake caliper

2 - Right front brake caliper

3 - Left rear brake caliper

4 - Right rear brake caliper

- Build pressure up in brake system by pumping brake pedal.

  Note

Slowly depress the brake pedal to prevent the formation of bubbles.

- As soon as pressure is built up, hold brake pedal in depressed position.

- Open the bleed screw, with bleeder bottle hose connected, until the pressure is relieved (pedal drops).

- Hold pedal in completely depressed position and close the bleed screw.

- Release brake pedal and wait approximately 2 seconds so that brake fluid can flow out of the brake fluid reservoir.

- Repeat the procedure until the brake fluid flows out clear and free of bubbles.

- Tighten the bleed screw, remove the bleed hose and connect put the cap on the bleed screw.

- Repeat the bleeding procedure in the specified sequence for the other brake calipers.

- Fill the brake fluid reservoir under consideration of brake pad wear up to the max marking and screw on the fuel cap.

- Start the engine and check the brake pedal travel and pressure.

- If the pedal travel is too long, check the brake system for leaks and repeat the bleeding procedure, if necessary.

Changing the brake fluid. Refer to →  Brake Fluid: Replacing.

  WARNING

There is the risk of an accident.

Make sure the brakes are working correctly before driving the vehicle.

Checking for Leaks

Special tools and workshop equipment required

  • Brake Pressure Gauge -VAG1310A-
  • Brake Pedal Actuator -VAG1869/2-.

  Note

Additional adapters may be needed in order to connect Brake Pressure Gauge -VAG1310A- to the caliper.

High pressure testing:

  • Brake system (brake master cylinder, brake hoses, brake lines and brake calipers) tested for function and leaks.

- Remove bleed screw at one of the front brake calipers. Connect the Brake Pressure Gauge -VAG1310 A- and bleed.

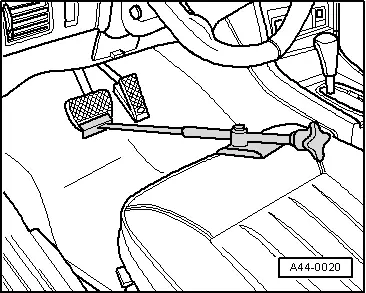

- Insert the Brake Pedal Actuator -VAG1869/2- between the brake pedal and driver seat. Apply pressure to brake pedal until the gauge indicates a pressure of 50 bar. The pressure must not drop by more than 4 bar during the test period of 45 seconds.

Replace master cylinder if pressure drops greatly.

Low pressure testing:

- Set the brake pedal actuator back far enough that the pressure gauge indicates 6 bar positive pressure.

- The pressure must not drop by more than 1 bar during a test period of 3 minutes.

Replace master cylinder if pressure drops greatly.

Audi Q5. A44-0020

Special Tools

Special tools and workshop equipment required

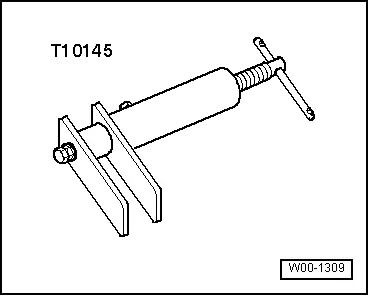

  • Piston Resetting Tool -T10145-

Audi Q5. W00-1309

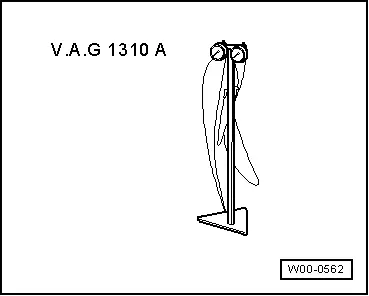

  • Brake Pressure Gauge -VAG1310A-

Audi Q5. W00-0562

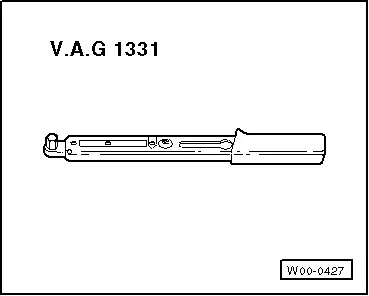

  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Torque Wrench 1332 40-200Nm -VAG1332-

Audi Q5. W00-0427

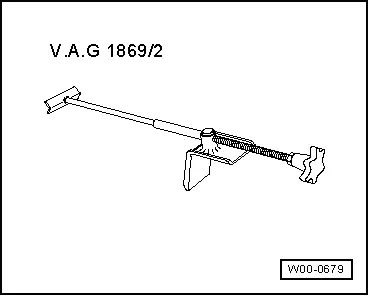

  • Brake Pedal Actuator -VAG1869/2-.

Audi Q5. W00-0679

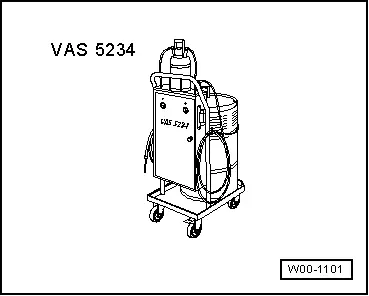

  • Brake Charger/Bleeder Unit -VAS5234- with Brake Bleeder Adapter -VAS5234/1-

Audi Q5. W00-1101

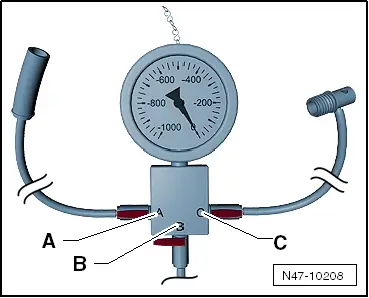

  • Brake Servo Tester -VAS6721-

Audi Q5. N47-10208

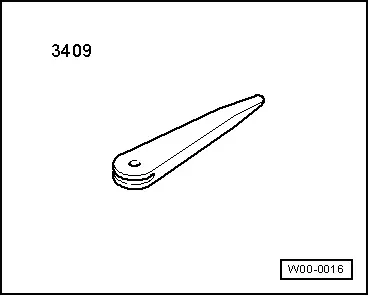

  • Trim Removal Wedge -3409-

Audi Q5. W00-0016

Revision History

DRUCK NUMBER: A005Q500421

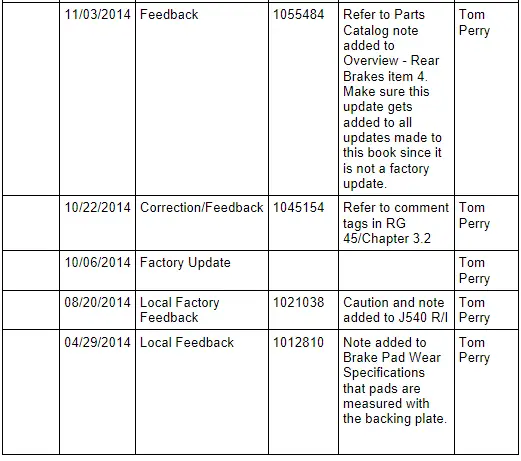

Audi Q5. Revision History

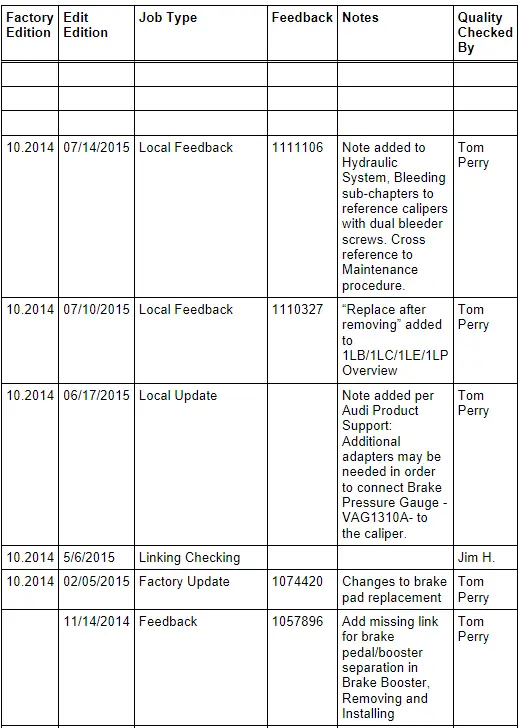

Audi Q5. Revision History
