Audi Q5: Cleaning and care information


			When cleaning and caring for individual vehicle components, refer to the
following tables. The information contained there is simply recommendations.
For questions or for components that are not listed, refer to an authorized Audi
dealer.

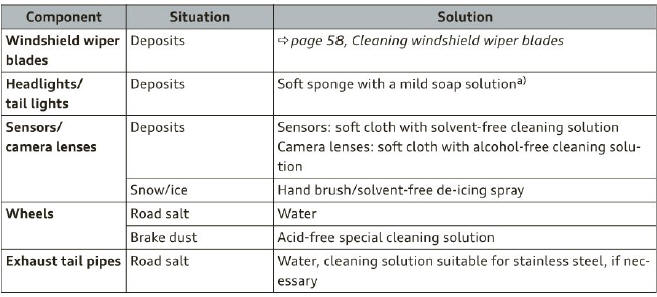

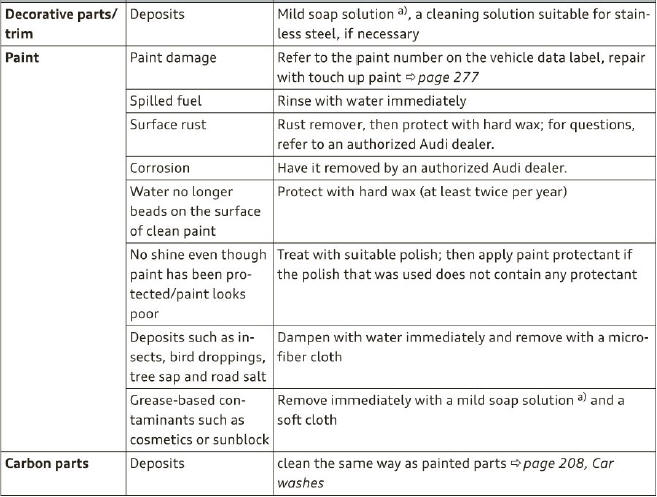

Exterior cleaning
.jpg)
.jpg)
a) Mild soap solution: maximum two tablespoons of neutral soap in
1 quart (1 liter) of water

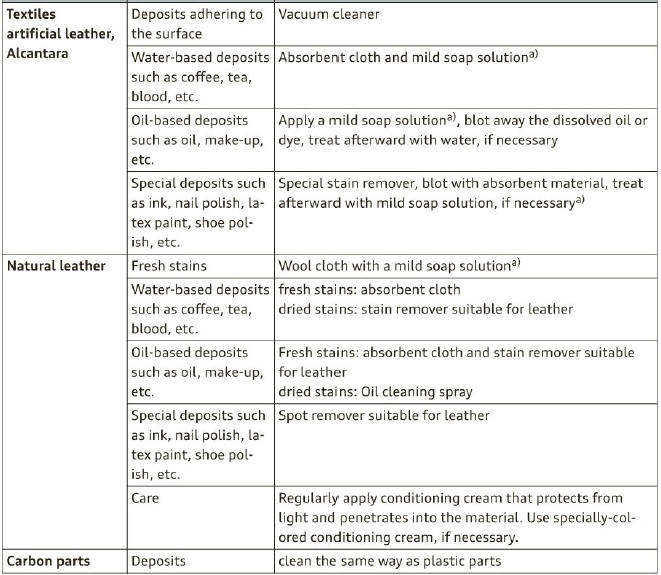

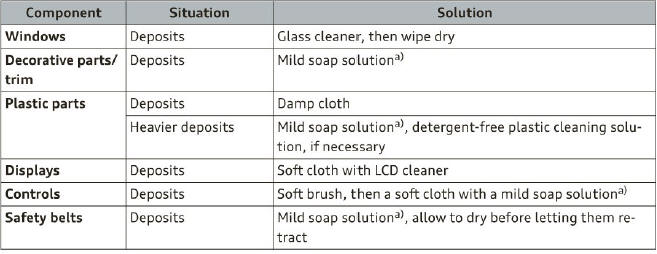

Internal cleaning
.jpg)
.jpg)
a) Mild soap solution: maximum two tablespoons of neutral soap in
1 quart (1 liter) of water
WARNING
The windshield may not be treated with water-repelling windshield
coating agents. Unfavorable conditions such as wetness, darkness, or low sun can
result in increased glare. Wiper blade chatter is also possible.
Note
	- Headlights/tail lights
		- Never clean headlights or tail lights with a dry cloth or sponge.

		- Do not use any cleaning product that contains alcohol, because
		they could cause cracks to form.



	- Wheels
		- Never use any paint polish or other abrasive materials.

		- Damage to the protective layer on the rims such as stone chips or
		scratches must be repaired immediately.



	- Sensors/camera lenses
		- Never use warm or hot water to remove snow or ice from the camera
		lens. This could cause the lens to crack.

		- Never use abrasive cleaning materials or alcohol to clean the
		camera lens. This could cause scratches and cracks.



	- Door windows
		- Remove snow and ice on windows and exterior mirrors with a
		plastic scraper. To avoid scratches, move the scraper only in
		one direction and not back and forth.

		- Never remove snow or ice from door windows
		and mirrors using warm or hot water
		because this could cause cracks to form.

		- To avoid damage to the rear window defogger,
		do not apply any stickers on the
		heating wires on the inside of the window.



	- Decorative parts/trim
		- Never use chrome care or cleaning products.



	- Paint
		- To reduce the risk of scratches, the vehicle
		must be free of dirt and dust before polishing
		or waxing.

		- To prevent paint damage, do not polish or
		wax the vehicle in direct sunlight.

		- To reduce the risk of paint damage, do not
		polish away rust spots.

		- Remove cosmetics and sunscreen immediately - these could damage
		the paint.



	- Displays
		- To avoid scratches, do not use dry cleaning
		methods on displays.



	- Controls
		- Make sure that no fluids enter the controls,
		because this could cause damage.



	- Safety belts


	- Textiles/artificial leather/Alcantara


	- Natural leather
		- Never treat leather with solvents, floor
		polish, shoe polish, spot remover or similar
		products.

		- Objects with sharp edges such as zippers,
		rivets on clothing or belts can cause damage
		to the surface.

		- Never use steam cleaners, brushes, hard
		sponges, etc. when cleaning.

		- Do not turn on the seat heating to dry
		the seat.

		- To help prevent the leather from fading,
		do not leave the vehicle in direct sunlight
		for long periods of time. If leaving the vehicle
		parked for long periods of time, you
		should cover the leather to protect it from
		direct sunlight.



Tips
	- Insects are easier to remove from paint that
	has been freshly waxed.

	- Regular waxing can prevent rust spots from
	forming.

Placing your vehicle out of service
If you would like to take your vehicle out of service
for a longer time, contact your authorized
Audi dealer or qualified repair facility. They will
advise you of important measures, such as corrosion
protection, maintenance and storage procedures.
Also follow the information about the battery.
