Engine compartment

These are the most important items that you can check.

Checking and Filling

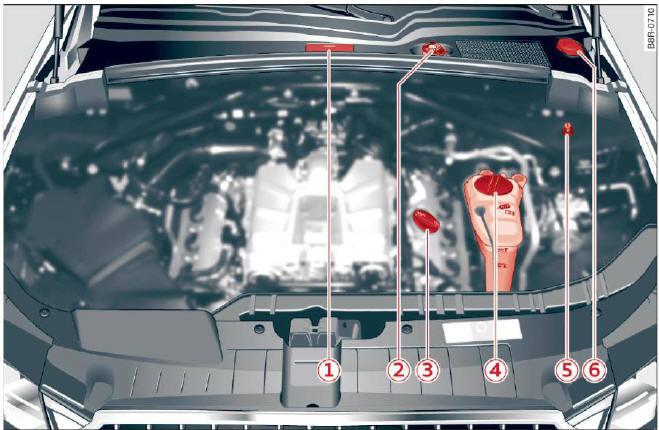

Fig. 197 Typical layout for containers and engine oil filler cap

  1. Jump start point (+) under a cover
  2. Brake fluid reservoir
  3. Engine oil filler cap
  4. Coolant expansion tank
  5. Jump start point (-) with hex head screw
  6. Windshield/headlight washer container

The position of the engine oil filling hole > fig. 197 (item 3) can differ depending on the engine design.
