Audi Q5: Left/Right Front Treble Speaker -R20-/-R22-, Removing and Installing

Audi Q5 Type 8R (2008 - 2017) Service Manual / Electrical System / Communication / Sound System / Left/Right Front Treble Speaker -R20-/-R22-, Removing and Installing

Front Treble Speaker, Removing and Installing, Bang & Olufsen

The Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- are located in the triangular mirror trim.

Removing and installing is identical.

- Turn off the ignition and all electrical consumers and remove the ignition key.

  WARNING

Danger of unintended engine ignition

Turn off the ignition and remove the ignition key from the vehicle interior for all work performed on the high voltage vehicle.

Removing

- Remove the treble speaker trim. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Treble Speaker Trim, Removing and Installing.

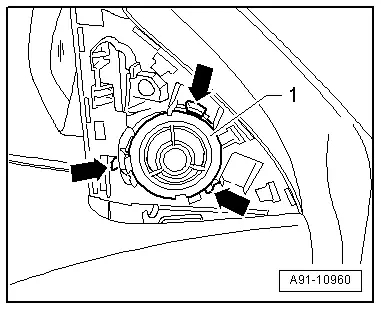

- Press the retainer -arrows- on the Left Front Treble Speaker -R20--1- outward and remove the Left Front Treble Speaker -R20--1-.

- Disconnect the connector from the Left Front Treble Speaker -R20--1-.

Installing

- Install in reverse order of removal.

Tightening specifications and installation instructions can be found in the Component Location Overview. Refer to → Chapter "Component Location Overview - Sound System, Premium, Bang & Olufsen".

Audi Q5. A91-10960

Front Treble Speaker, Removing and Installing

The Left Front Treble Speaker -R20-/Right Front Treble Speaker -R22- are located in the instrument panel.

Removing and installing is identical.

- Turn off the ignition and all electrical consumers and remove the ignition key.

  WARNING

Danger of unintended engine ignition

Turn off the ignition and remove the ignition key from the vehicle interior for all work performed on the high voltage vehicle.

Removing

- Unclip the speaker trim from the instrument panel.

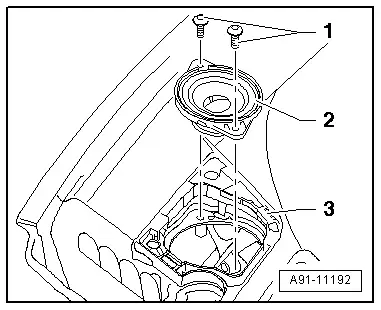

- Remove the screws -1- from the Left Front Treble Speaker -R20--2- and remove the Left Front Treble Speaker -R20--2- from the instrument panel -3-.

- Disconnect the connector from the Left Front Treble Speaker -R20--2-.

- Remove the Left Front Treble Speaker -R20--2- completely from the instrument panel -3-.

Installing

- Install in reverse order of removal.

Tightening specifications and installation instructions can be found in the Component Location Overview. Refer to → Chapter "Component Location Overview - Sound System, Basic/Standard".

Audi Q5. A91-11192
