Audi Q5: Opening and closing rear lid

Opening and closing

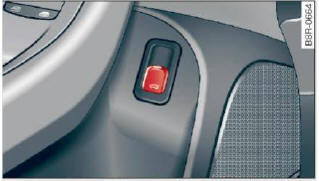

Fig. 34 Driver's door: remote rear lid release

Opening and closing

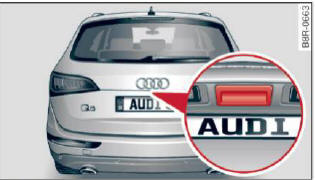

Fig. 35 Position of handle in the rear lid

Opening the luggage compartment lid

  • Press the button on the master key for at least one second, or
  • Pull the release button in the driver's door > fig. 34, or
  • Press the handle in the luggage compartment lid > fig. 35.
  • The luggage compartment lid unlocks.

Closing the luggage compartment lid

  • Use the inside grip to pull the rear lid down and allow it to drop gently to close it.

WARNING

  • After closing the rear lid, always pull up on it to make sure that it is properly closed.

    Otherwise it could open suddenly when the vehicle is moving.

  • To help prevent poisonous exhaust gas from being drawn into the vehicle, always keep the rear lid closed while driving. Never transport objects larger than those which fit completely into the luggage area, because then the rear lid cannot be fully closed.
  • Never leave your vehicle unattended especially with the rear lid left open. A child could crawl into the car through the luggage compartment and pull the lid shut, becoming trapped and unable to get out. To reduce the risk of personal injury, never let children play in or around your vehicle. Always keep the rear lid as well as the vehicle doors closed when not in use.
  • Always ensure that no one is within range of the rear lid when it is moving, in particular close to the hinges - fingers or hands can be pinched.

Tips

When the vehicle is locked, the luggage compartment lid can be unlocked separately by pressing the button on the master key.

When the luggage compartment lid is closed again, it locks automatically.
