Audi Q5: Right cockpit fuse assignment

Audi Q5 Type 8R (2008 - 2017) Owner's Manual / Troubleshooting / Fuses and bulbs / Right cockpit fuse assignment

Fuses

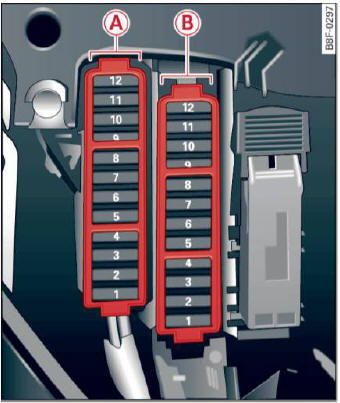

Fig. 225 Right side of the cockpit: fuse panel with plastic clip

Fuse panel A (black)

  1. Steering column switch module
  1. Terminal 15 diagnostic connector
  2. Gateway (Databus diagnostic interface)
  3. Auxiliary heater

Fuse panel B (brown)

  1. CD /DVD player
  2. Wi-Fi
  3. MMI/Radio
  4. Instrument cluster
  5. Gateway (instrument cluster control module)
  6. Ignition lock
  7. Light dial
  8. Climate control system blower
  9. Steering column lock
  10. Climate control system
  11. Diagnostic data link connector, terminal 30
  12. Steering column switch module

Right luggage compartment fuse assignment

Fuses

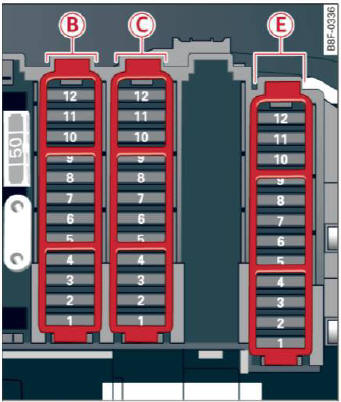

Fig. 226 Right side of the luggage compartment: fuse panel with plastic clip

Fuse panel B (black)

  1. Luggage compartment lid control module
  2. Trailer control module
  3. Trailer control module
  4. Trailer control module
  5. Electromechanical parking brake
  6. Electronic damping control
  7. Electromechanical parking brake
  8. Tail lights
  9. quattro Sport
  10. Tail lights
  11. Central locking system
  12. Terminal 30

Fuse panel C (brown)

  1. Luggage compartment lid control module
  2. 12 V socket
  3. DCDC converter path 1 or high voltage battery blower (hybrid drive)
  4. DCDC converter path 2, DSP amplifier, radio
  1. Electromechanical parking brake
  1. Right front door (window regulator, central locking, mirror, switch, lighting)
  1. Rear right door (window regulator, switch, lighting)
  2. Cell phone preparation

Fuse panel E (black)

  1. Right front seat heating
  2. Automatic dimming rearview mirror
  3. Instrument panel terminal 30
  4. MMI
  5. Radio
  6. Rearview camera
  7. Rear window defogger
  8. Rear Seat Entertainment
  1. AdBlue heating
  2. AdBlue supply or high voltage battery (hybrid drive)
