Audi Q5: Technical Data

Technical data

Vehicle identification

Technical data
Fig. 236 Vehicle Identification Number (VlN) plate: location on driver's side dash panel

Technical data
Fig. 237 Vehicle identification label: inside the luggage compartment

Vehicle Identification Number (VLN)

The Vehicle Identification Number is located in different places:

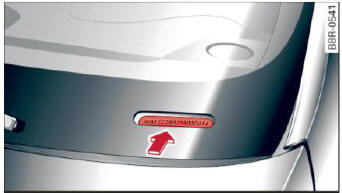

  • under the windshield on the driver's side > fig. 236.
  • in the radio or in the MMI: Select: function button > Vehicle ID number (VIN) or select function button > Car systems control button > Servicing & checks > VIN number.
  • on the vehicle identification label

Vehicle identification label

The vehicle identification Label is located in the luggage compartment above the compartment for the vehicle tools.

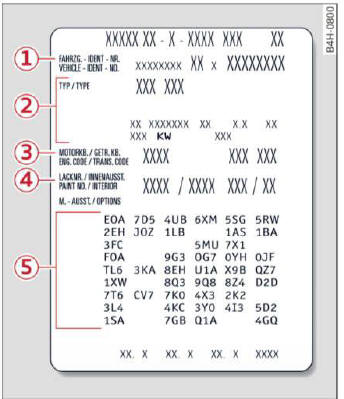

The label > fig. 237 shows the following vehicle data:

  1. Vehicle Identification Number (VIN)
  2. Vehicle type, engine output, transmission
  3. Engine and transmission code
  4. Paint number and interior
  5. Optional equipment numbers

The information of the vehicle identification label can also be found in your Warranty & Maintenance booklet.

Safety compliance sticker

The safety compliance sticker is your assurance that your new vehicle complies with all applicable Federal Motor Vehicle Safety Standards which were in effect at the time the vehicle was manufactured.

You can find this sticker on the door jamb on the driver's side. It shows the month and year of production and the vehicle identification number of your vehicle (perforation) as well as the Cross Vehicle Weight Rating (GVWR) and the Gross Axle Weight Rating (GAWR).

High voltage warning label

The high voltage warning label is located in the engine compartment next to the engine hood release.

The spark ignition system complies with the Canadian standard ICES-OO2.

Weights

Gross Vehicle Weight Rating

The Gross Vehicle Weight Rating (GVWR), and the Gross Axle Weight Rating (GAWR) for front and rear are listed on a sticker on the doorjamb on the driver's side.

The Gross Vehicle Weight Rating includes the weight of the basic vehicle plus full fuel tank, oil and coolant, plus maximum load, which includes passenger weight (150 lbs/68 kg per designated seating position) and luggage weight.

Gross Axle Weight Rating

The Cross Axle Weight Rating is the maximum load that can be applied at each axle of the vehicle.

Vehicle capacity weight

The vehicle capacity weight (max. load) is listed on the driver's side B-pillar.

WARNING

  • The actual Cross Axle Weight Rating at the front and rear axles should not exceed the permissible weights, and their combination must not exceed the Cross Vehicle Weight Rating.
  • Exceeding permissible weight ratings can result in vehicle damage, accidents and personal injury.

Note

  • The vehicle capacity weight figures apply when the load is distributed evenly in the vehicle (passengers and luggage). When transporting a heavy load in the luggage compartment, carry the load as near to the rear axle as possible so that the vehicle's handling is not impaired.
  • Do not exceed the maximum permissible axle loads or the maximum gross vehicle weight. Always remember that the vehicle's handling will be affected by the extra load. Therefore, adjust your speed accordingly.
  • Always observe local regulations.

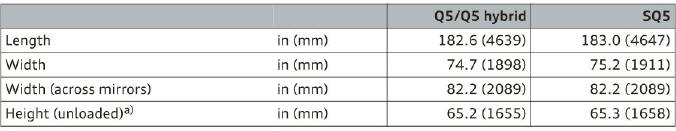

Dimensions

Technical data

a) The height of the vehicle depends on the tires and the suspension.

When driving up steep ramps, on rough roads, over curbs, etc. it is important to remember that some parts of your vehicle, such as spoilers or exhaust system components, may be close to the ground. Be careful not to damage them.

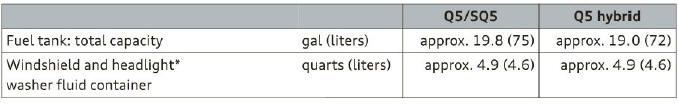

Capacities

Technical data

Gasoline engines

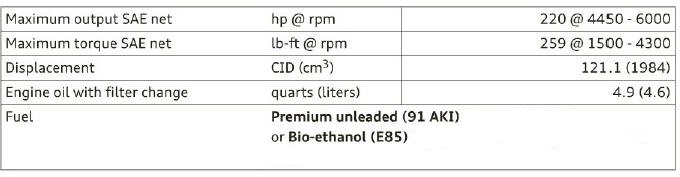

Q5 2.0, 4 cylinder

Technical data

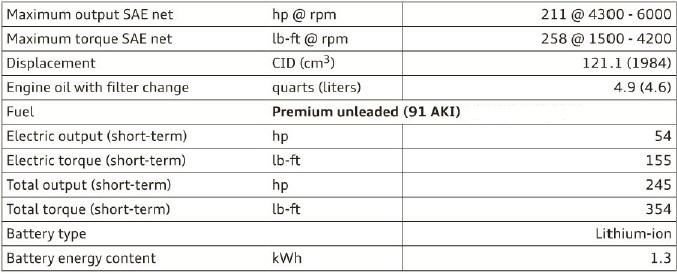

Q5 2.0 hybrid, 4 cylinder

Technical data

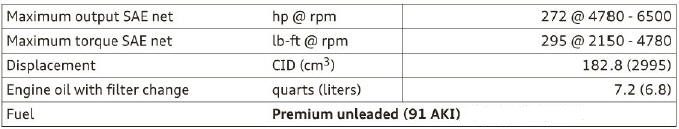

Q5 3.0, 6 cylinder

Technical data

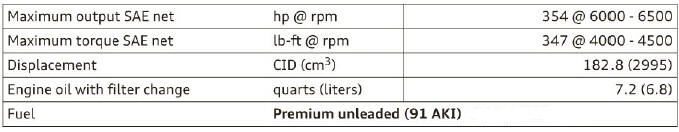

SQ5 3.0, 6 cylinder

Technical data

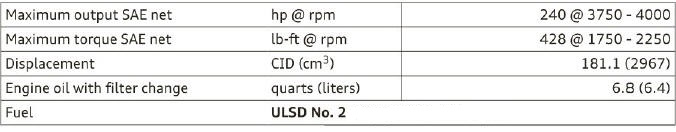

Diesel engine

Q5 3.0 TDI, 6 cylinder

Technical data
