Audi Q5: Front seats

Audi Q5 Type 8R (2008 - 2017) Owner's Manual / Operation / Seats and storage / Front seats

Power seat adjustment

Seats and storage

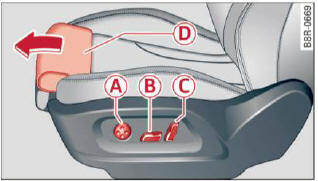

Fig. 64 Front seat: Controls for seat adjustment

Controls

A - Adjusting the lumbar support: press the button in the corresponding position

B - Moving the seat up/down: press the button up/down. To adjust the front seat cushion, press the front button up/down. To adjust the rear seat cushion, press the rear button up/down

B - Moving the seat forward/back: press the button forward/back

C - Adjusting the backrest angle: press the button forward/back

D - Lengthening/shortening the upper thigh support: lift the handle

WARNING

  • Never adjust the driver's or front passenger's seat while the vehicle is moving. If you do this while the vehicle is moving, you will be out of position. Always adjust the driver's or front passenger's seat when the vehicle is not moving.
  • Be careful when adjusting the seat height.

    Check to see that no one is in the way, or serious injury could result!

  • Because the seats can be electrically adjusted with the ignition off or with the ignition key removed, never leave children unattended in the vehicle. Unsupervised use of the electric seat adjustments may cause serious injury.
  • To reduce the risk of injury in the case of sudden braking or accident, front passengers must never ride in a moving vehicle with the backrest reclined. Safety belts and the airbag system only offer maximum protection when the backrest is upright and the safety belts are properly positioned on the body. The more the backrest is reclined, the greater the risk of personal injury from an incorrect seating position and improperly positioned safety belts.
