Audi Q5: Panorama sunroof

Operation

Applies to vehicles: with Panoramic sliding sunroof

Opening and closing

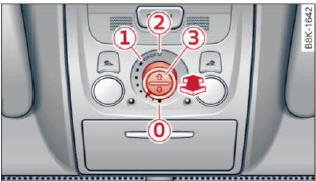

Fig. 42 Section from headliner: Knob for Panoramic sliding sunroof

Tilting

  • The sunroof can be tilted or closed only in switch position 0 > fig. 42
  • To tilt it, briefly press the switch > fig. 42.
  • To close it, briefly pull the switch.
  • To set an intermediate position, press/pull the switch until the sunroof reaches the desired position.

Opening

  • To move the sunroof to the position for reduced wind noise, turn the switch to position 1 until resistance can be felt.
  • To open the sunroof completely, turn and hold the switch against the resistance in position 2.
  • To close the sunroof, turn the switch to position 0.
  • Turn the switch to the desired position to select an intermediate position.

Opening and closing the sunshade

  • To automatically open the sunshade completely, briefly press the switch 3 in the desired arrow direction.
  • To stop the sunshade in an intermediate position, press the switch again, or
  • Press and hold the switch in the desired arrow direction.
  • Release the switch when sunshade is at desired position.

After the ignition is switched off, you can still operate the Panoramic sliding sunroof for about 10 minutes. As soon as the driver's or passenger's door is opened, the switch is inoperative.

The power sunshade can also be closed when the Panoramic sliding sunroof is open.

WARNING

Pay careful attention when closing the Panoramic sliding sunroof - otherwise serious injury could result! For this reason, always remove the ignition key when leaving the vehicle.

Note

Always close your Panoramic sliding sunroof when leaving your vehicle. Sudden rain can cause damage to the interior equipment of your vehicle, particularly the electronic equipment.

Tips

Information regarding convenience opening/ closing.

Emergency closing of the Panoramic sliding sunroof

Applies to vehicles: with Panoramic sliding sunroof

If the Panoramic sliding sunroof detects an object in its path when it is closing, it will open again automatically. In this case, you can close the roof with the power emergency closing function.

  • Within five seconds after the sunroof opens automatically, pull the switch until the roof closes.
