Audi Q5: Seat Position Sensor

Overview - Seat Position Sensor

  Note

The seat position sensor is the same in all seat versions.

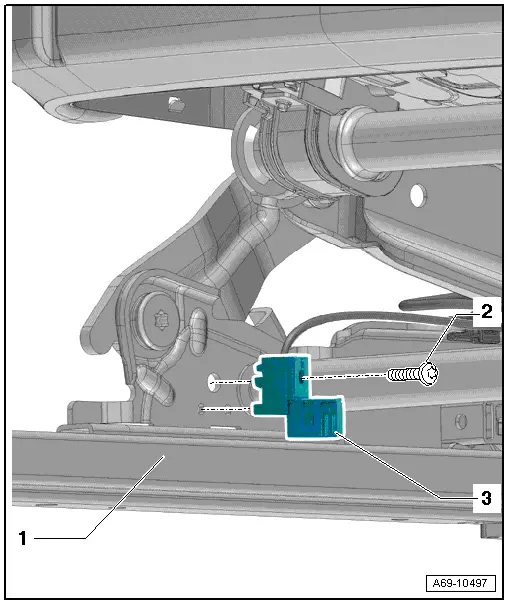

Audi Q5. Overview - Seat Position Sensor

1 - Lower Seat Frame

2 - Bolt

  • 1.3 Nm

3 - Seat Position Sensor

  • Driver side with Driver Seat Position Sensor -G553-
  • Front passenger side with Front Passenger Seat Position Sensor -G554-
  • Versions with Seat Occupied Sensor for Belt Fastening Detection, Removing and Installing, refer to → Chapter "Seat Position Sensor, Removing and Installing, with Seat Occupied Sensor for Belt Fastening Detection"
  • Versions with Seat Occupied Sensor for Passenger Airbag Deactivation, Removing and Installing, refer to → Chapter "Seat Position Sensor, Removing and Installing, with Seat Occupied Sensor for Passenger Airbag Deactivation"

Seat Position Sensor, Removing and Installing

Seat Position Sensor, Removing and Installing, with Seat Occupied Sensor for Belt Fastening Detection

The seat position sensor is provided as a replacement part with the wiring harness and the black 10-pin connector. The following wires with connectors are contained in the wiring harness:

  • Wire with seat belt latch coupling connector (driver seat).
  • Wire with seat belt latch coupling connector (passenger seat).
  • Wire with Front Passenger Seat Occupant Sensor -G128- coupling connector.

Removing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Remove the front seat. Refer to → Chapter "Front Seat, Removing and Installing".

- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture -VAS6136-. Refer to → Chapter "Front Seat, Mounting on Fixture for Seat Repair".

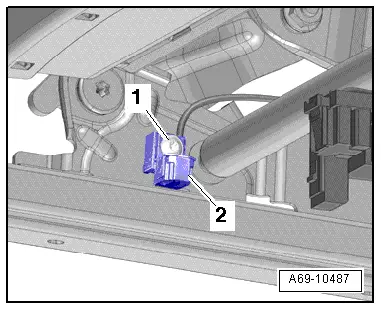

- Remove the bolt -1-.

- Remove the seat position sensor -2- from the lower seat frame.

- Unclip the seat position sensor wire on the lower seat frame.

- Open the corrugated tube and remove the wire with the 10-pin seat belt latch connector. Refer to → Chapter "Modular Wire Routing with Corrugated Tube on Front Seat".

Audi Q5. A69-10487

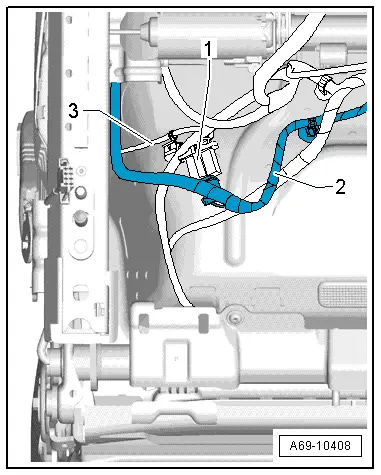

Driver Seat:

- Open the cable ties or cable clips up to the electrical connector -1-.

- Disconnect the connector.

2 - Wire to the black 10-pin connector and Driver Seat Position Sensor -G553-

3 - Wire to the seat belt latch

  Note

Harness connector -1- with the wire and wire clip remain on the seat pan upper frame.

- Remove the seat position sensor with the wires from the seat pan lower frame.

Audi Q5. A69-10408

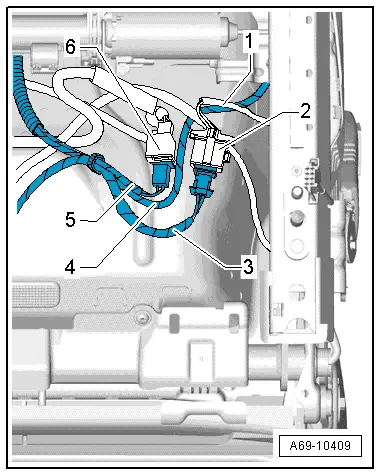

Front Passenger Seat:

- Open the cable ties or cable clips up to the electrical connectors -2- and -6-.

- Disconnect electrical connectors.

1 - Wire to the seat belt latch

3 - Wire to the black 10-pin connector and seat belt latch

4 - Wire to the black 10-pin connector and Front Passenger Seat Position Sensor -G554-

5 - Wire to Front Passenger Seat Occupant Sensor -G128-

  Note

Harness connectors -2- and -6- with the wires and wire clips remain on the seat pan upper frame.

- Remove the seat position sensor with the wires from the seat pan lower frame.

Audi Q5. A69-10409

Installing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

Install in reverse order of removal. Note the following:

  Note

Make sure the connectors are installed correctly and are secure.

  WARNING

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

  DANGER!

When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.

Perform the following before switching on the ignition:

  • Move the selector lever into P.
  • Activate the parking brake
  • Turn off the ignition.
  • Open the hood
  • Connect Battery Charger -VAS5095A- to the battery jump start terminal.
  • Turn on the ignition.

- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

  Note

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again → Vehicle diagnostic tester.

Audi Q5. A69-10409

Seat Position Sensor, Removing and Installing, with Seat Occupied Sensor for Passenger Airbag Deactivation

The seat position sensor is a component of the wiring harness to the Passenger Occupant Detection System Control Module -J706-, whose electrical harness connectors must not be disconnected. To replace the seat position sensor, the electrical wires to the seat position sensor must be disconnected and the new seat position sensor must be connected with crimp connectors.

Removing

  WARNING

  • Follow all safety precautions when working with pyrotechnic components (refer to → Chapter "Pyrotechnic Components Safety Precautions") and passenger occupant detection system passenger airbag deactivation (refer to → Chapter "Passenger Occupant Detection System Deactivation Additional Safety Precautions, Market-Specific").
  • Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Remove the front passenger seat. Refer to → Chapter "Front Seat, Removing and Installing".

- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture -VAS6136-. Refer to → Chapter "Front Seat, Mounting on Fixture for Seat Repair".

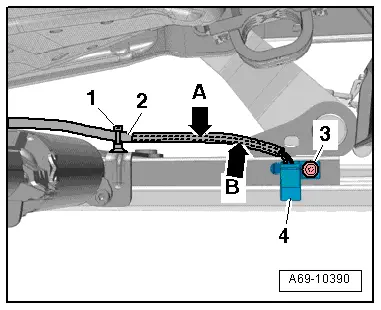

- Remove screw -3- and seat position sensor -4- from the seat pan lower frame.

  Caution

Do not damage the insulation on the individual wires.

- Cut protective hose -2- to just in front of clip -1-.

- Cut through both electrical wires at the places marked with -arrow A- and -arrow B- to approximately 1/3 to 2/3 of the free length.

Audi Q5. A69-10390

Installing

  WARNING

  • Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
  • Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Cut the electrical wires on the new seat position sensor to the same length as those on the old sensor.

  • The same wire colors must have the same length.

- Connect the wires with crimp connectors -arrow A- and -arrow B-. Refer to → Electrical Equipment General Information; Rep. Gr.97; Wiring Harness and Connector Repairs.

- Wrap the entire length of the wiring harness from the clip to the seat position sensor with fabric-reinforced adhesive tape.

Install in reverse order of removal. Note the following:

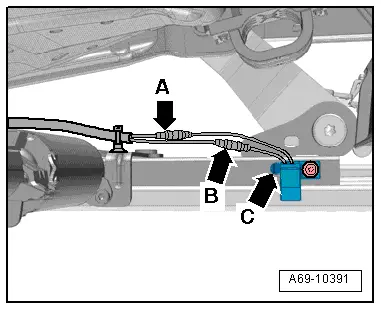

- Install the seat position sensor -arrow C- on the lower seat frame. Refer to → Chapter "Seat Position Sensor, Removing and Installing, with Seat Occupied Sensor for Belt Fastening Detection".

Audi Q5. A69-10391

  Note

Make sure the connectors are installed correctly and are secure.

  WARNING

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

  DANGER!

When working on vehicles with the ignition already switched on or that are ready to drive there is a danger of the engine starting unexpectedly and of being poisoned by gas in enclosed areas. Risk of body parts and/or clothing being clamped or pulled.

Perform the following before switching on the ignition:

  • Move the selector lever into P.
  • Activate the parking brake
  • Turn off the ignition.
  • Open the hood
  • Connect Battery Charger -VAS5095A- to the battery jump start terminal.
  • Turn on the ignition.

- Connect the battery ground cable with the ignition turned on. Refer to → Electrical Equipment; Rep. Gr.27; Battery; Battery, Disconnecting and Connecting.

  Note

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again → Vehicle diagnostic tester.
