Audi Q5: Special Tools

Audi Q5. Special Tools

Special tools and workshop equipment required

  • Press Plate -VW402-
  • Press Piece - Rod -VW407-
  • Bearing Installer - Wheel Bearing -3345-
  • Bearing Installer - Multiple Use - Assembly Tool -3347/1-

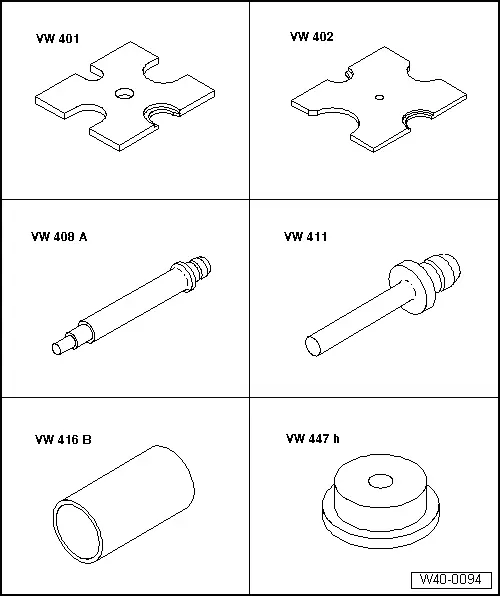

  Audi Q5. Special Tools

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Rod -VW408A-
  • Press Piece - Rod -VW411-
  • Press Piece - 37mm -VW416B-
  • Press Piece - Multiple Use -VW447H-

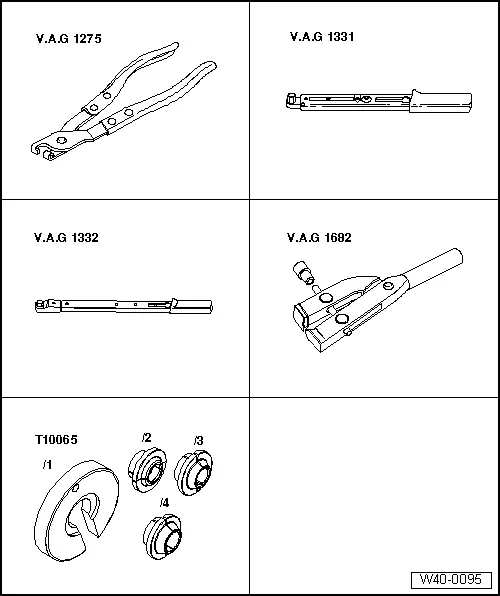

  Audi Q5. Special Tools

  • Hose Clip Pliers -VAG1275A-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Clamping Pliers -VAG1682A-
  • Tripod Joint Tool -T10065-

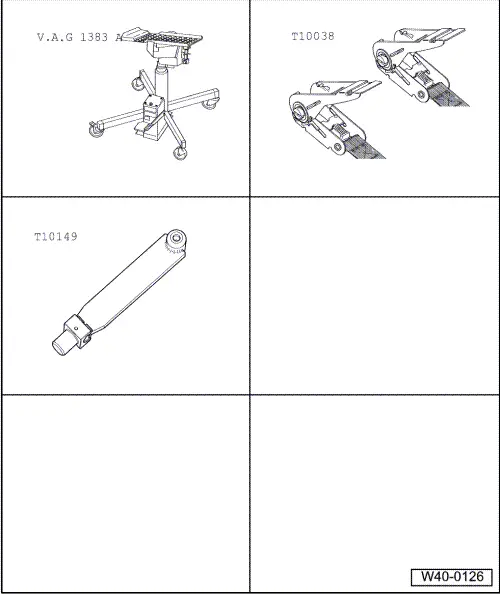

  Audi Q5. Special Tools

  • Engine and Gearbox Jack -VAS6931-
  • Tensioning Strap -T10038-
  • Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-
  • Shock Absorber Set - Socket -T10001/3-
  • Shock Absorber Set - Socket -T10001/4-
  • Shock Absorber Set - Extension SW6 -T10001/7-
  • Shock Absorber Set - Reversible Ratchet -T10001/11-

Audi Q5. W00-0497

  • Hydraulic Press - Bushing Tool Kit -T10030-

Audi Q5. W00-10492

  • Hydraulic Press - Bushing Assembly Tool Kit -T10230-

Audi Q5. W00-10227

  • Puller - Ball Joint -T40010A-

Audi Q5. W00-10591

  • Triple Roller Assembly Tool -T40018-

Audi Q5. W00-1097

  • or Triple Roller Assembly Tool -T40084-

Audi Q5. W00-10267

  • Shop Press -VAG1290A-

Audi Q5. W00-0711

  • Torque Wrench 1332 Insert - Ring Wrench - 21mm -VAG1332/7-

Audi Q5. W00-10096

  • Torque Wrench 1332 Insert - Ring Wrench - 18mm -VAG1332/10-

Audi Q5. W00-0953

  • Torque Wrench 1410 -VAG1410-

Audi Q5. W00-0554

  • Torque Wrench 80-400Nm -VAG1576-
  • Spring Compressor Kit - Spring Tensioner -VAG1752/1-

Audi Q5. W00-0506

  • Spring Compressor Kit - Strut Holder -VAG1752/2-

Audi Q5. W00-0500

  • Spring Compressor Kit - Spring Retainer w/Inserts -VAG1752/7-
  • Spring Compressor Kit - Supplementary Set -VAG1752/18-
  • Spring Compressor Kit - Supplementary Set - Slider -VAG1752/18-3-
  • Spring Compressor Kit - Supplementary Set -VAG1752/19-
  • Spring Compressor Kit - Supplementary Set - Clamp Plate -VAG1752/19-1-

Audi Q5. W00-0668

  • Digital Torque Wrench -VAG1756A-

Audi Q5. W00-0449

  • Press Piece - Multiple Use -VW412-

Audi Q5. W00-0139

  • Press Piece - Split Tube -VW463/2-

Audi Q5. W00-0682

  • Slide Hammer Set -VW771-
  • Puller - Kukko Separating Tool - Diameter 25-155mm -15/3-
  • Puller - Kukko Quick Action Separating Tool - 25-155mm -17/3-

Audi Q5. W00-0018

  • Bearing Installer - Wheel Bearing -3144-

Audi Q5. W00-0083

  • Subframe Bushing Tool Kit -3301-

Audi Q5. W00-0211

  • Pliers -3340-

Audi Q5. W00-0102

  • Bearing Installer - Control Arm -3346-

Audi Q5. W00-0207

  • Bearing Installer - Multiple Use -3348-

Audi Q5. W00-0308

  • Spreader Tool -3424-

Audi Q5. W00-0413
