Audi Q5: Vision
Sun visors
Using the sun visors makes driving safer.

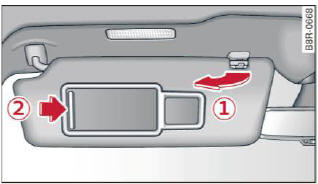

Fig. 54 Sun visor
The sun visors for the driver and passenger can
be pulled out of their brackets in the center of
the vehicle and turned towards the doors
> fig. 54 1. After the sun visor has been turned
to the door, it can be extended lengthwise.
Vanity mirror
The vanity mirrors on the sun visors are covered.
When the lid is opened 2, the mirror light in the
headliner turns on automatically. It turns off
when the lid is closed and the visor is folded up
again.
Sun shade
Applies to vehicles: with sun shade

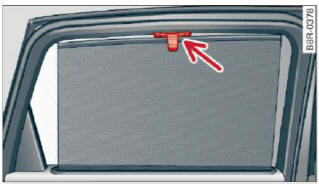

Fig. 55 Sun shade pulled up on a rear window
- Pull the shade out and hang it in the bracket on
the upper door frame > fig. 55.
