Audi Q5: Raising the vehicle

Lifting with workshop hoist and with floor jack

The vehicle may only be lifted at the lifting points illustrated.

Emergency situations

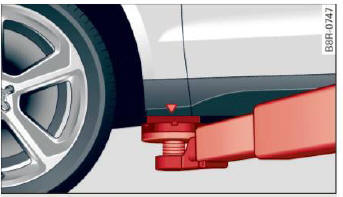

Fig. 234 Front lifting point

Emergency situations

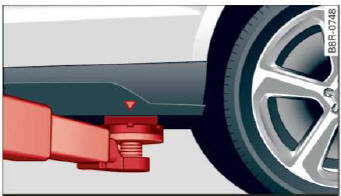

Fig. 235 Rear lifting point

  • Read and heed WARNING.
  • Locate lifting points > fig. 234 and > fig. 235.
  • Adjust lifting arms of workshop hoist or floor jack to match vehicle lifting points.
  • Insert a rubber pad between the floor jack/ workshop hoist and the Lifting points.

If you must lift your vehicle with a floor jack to work underneath, be sure the vehicle is safely supported on stands intended for this purpose.

Front lifting point

The lifting point is located on the floor pan reinforcement about at the same level as the jack mounting point > fig. 234. Do not lift the vehicle at the vertical sill reinforcement.

Rear lifting point

The lifting point is located on the vertical reinforcement of the lower sill for the onboard jack > fig. 235.

WARNING

  • To reduce the risk of serious injury and vehicle damage.
    • Always lift the vehicle only at the special workshop hoist and floor jack lift points illustrated > fig. 234 and > fig. 235.
    • Failure to lift the vehicle at these points could cause the vehicle to tilt or fall from a lift if there is a change in vehicle weight distribution and balance. This might happen, for example, when heavy components such as the engine block or transmission are removed.
  • When removing heavy components like these, anchor vehicle to hoist or add corresponding weights to maintain the center of gravity. Otherwise, the vehicle might tilt or slip off the hoist, causing serious personal injury.

Note

  • Be aware of the following points before lifting the vehicle:
    • The vehicle should never be lifted or jacked up from underneath the engine oil pan, the transmission housing, the front or rear axle or the body side members. This could lead to serious damage.
    • To avoid damage to the underbody or chassis frame, a rubber pad must be inserted between the floor jack and the lift points.
    • Before driving over a workshop hoist, check that the vehicle weight does not exceed the permissible lifting capacity of the hoist.
    • Before driving over a workshop hoist, ensure that there is sufficient clearance between the hoist and low parts of the vehicle.
