Audi Q5: Wheel Housing Liner

Audi Q5 Type 8R (2008 - 2017) Service Manual / Body / Body Exterior / Exterior Equipment / Wheel Housing Liner

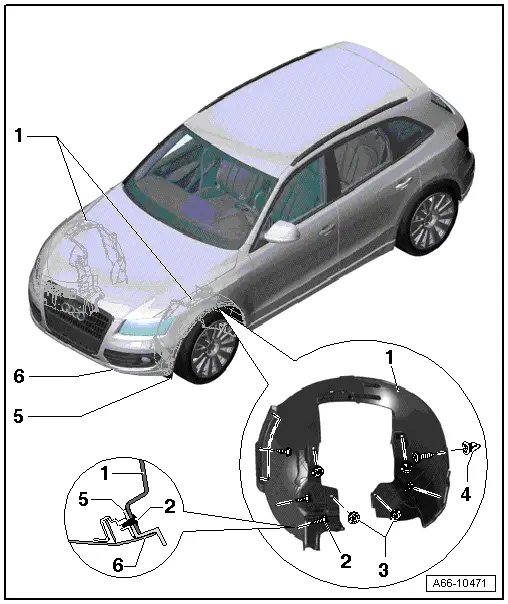

Overview - Front Wheel Housing Liner

Front Wheel Housing Liner

Audi Q5. Front Wheel Housing Liner

1 - Wheel Housing Liner

  • Removing:

- Driveshaft cover, removing.

- Press in front wheel accordingly.

- Remove the bolts on the lower wheel housing liner.

- Loosen the retainer on the clips, for example, using a small screwdriver, and slide the clip sideways off the retaining pins.

- Disengage wheel housing liner from fender and pull downward and out.

  • Install in reverse order of removal.

2 - Bolt

  • 2 Nm

3 - Clip

  • Quantity: 7

  Note

Replace the clips after removing the wheel housing liner.

4 - Expanding Clip

5 - Wheel Spoiler

6 - Bumper Cover

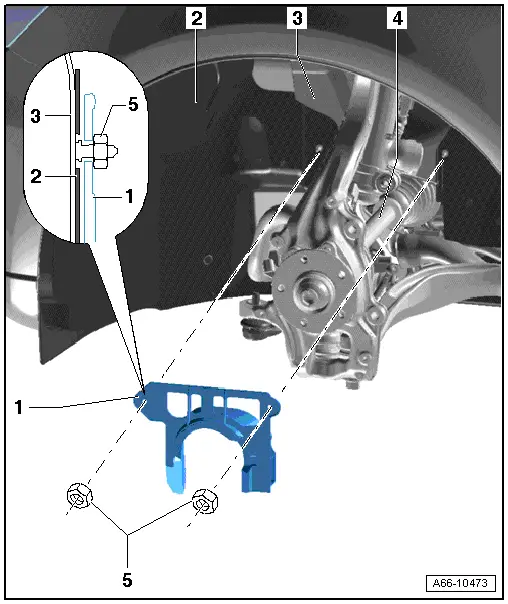

Driveshaft Cover

Audi Q5. Driveshaft Cover

1 - Driveshaft Cover

2 - Wheel Housing Liner

3 - Longitudinal Member

4 - Driveshaft

5 - Nut

  • 2 Nm

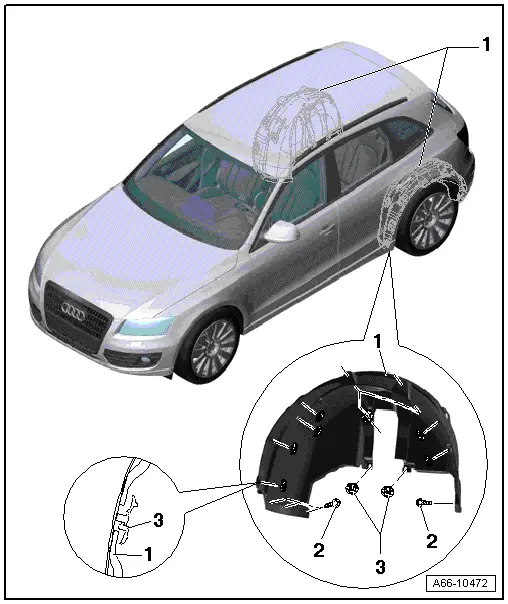

Overview - Rear Wheel Housing Liner

Audi Q5. Overview - Rear Wheel Housing Liner

1 - Rear Wheel Housing Liner

  • Removing:

- The rear wheel is removed.

- Remove the outer bolts.

- Remove the clips from the retaining pins.

- Remove wheel housing liner downward.

  • Install in reverse order of removal.

2 - Bolts

  • 2 Nm

3 - Clip

  • Quantity: 7

  Note

Replace the clips after removing the wheel housing liner.

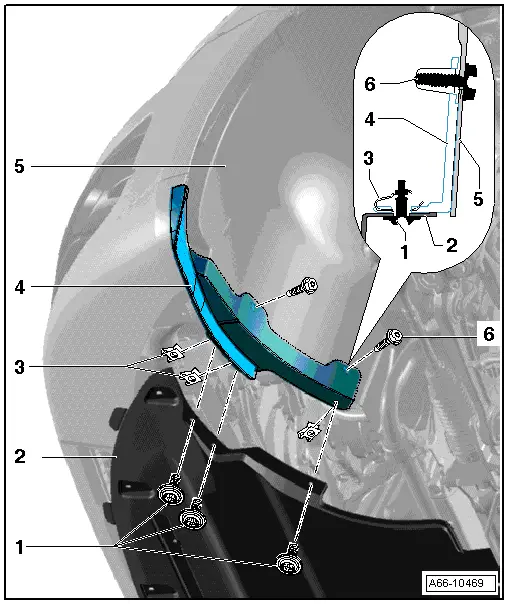

Overview - Front Wheel Spoiler

Audi Q5. Overview - Front Wheel Spoiler

1 - Clamping Pin

2 - Front Noise Insulation

3 - Spring Nut

  • Slide onto the noise insulation.

4 - Wheel Spoiler

- Remove the bolts in the wheel housing liner in the spoiler area.

- Press the wheel housing liner to the side in the spoiler area and loosen the locking pins.

- Remove the wheel spoiler under the wheel housing liner.

5 - Wheel Housing Liner

6 - Bolt

  • 1.5 Nm

Front Wheel Housing Liner, Removing and Installing

Refer to the Assembly Overview to determine removal and installation of the wheel housing liner. Refer to → Chapter "Overview - Front Wheel Housing Liner".

Special tools and workshop equipment required

  • Locking Pliers -VAS6199-

- Use to loosen the clips on the wheel housing liner.

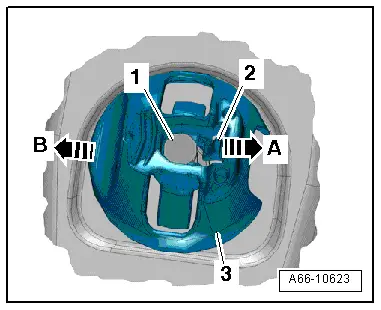

Release the Clip

- To remove the clips -3-, unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B-.

- The Locking Pliers -VAS6199- may also be alternatively used to release the clips.

Audi Q5. A66-10623
