Audi Q5: MMI Connector Assignment, Minimal Equipment

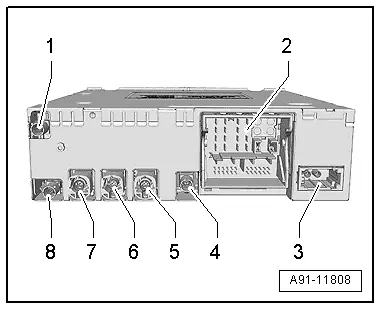

Information Electronics Control Module 1 -J794-

1 - Not Assigned

2 - Connection block with four multipin connectors

3 - MOST Bus

4 - Not Assigned

5 - 4-pin connector (T4al) for the Front Information Display Control Head -J685-

6 - 4-pin connector (T4ap) to External Audio Source Connection -R199-

7 - Not Assigned

8 - Not Assigned

Audi Q5. A91-11808

  Note

Unlisted connector terminals are not assigned.

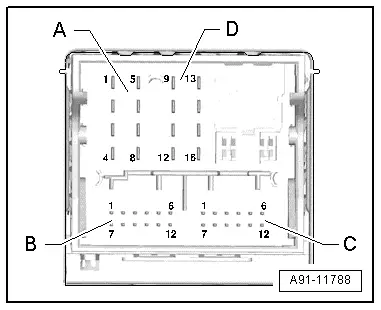

2 - Connection block with four multipin connectors

A - Brown 8-pin connector (T8ah)

1 - LF mute wire from preliminary setup for cell phone preparation

2 - Power Supply to Multimedia System Control Head -E380-

3 - Wake UP to Multimedia System Control Head -E380-

4 - Not Assigned

5 - Not Assigned

6 - Reset to the Multimedia System Control Head -E380-

7 - Ring-break Diagnostic Cable

Audi Q5. A91-11788

B - Blue 12-pin connector (T12x)

8 - Microphone IN (+) for the Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-)

9 - Microphone IN (-) for the Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-)

Audi Q5. A91-11788

C - Green 12-pin connector (T12y)

All pins are connected to the External Audio Source Connection -R199-.

1 - LF-In ground

2 - Right LF-In

3 - USB (+5V)

4 - USB (ground)

5 - Not Assigned

6 - Detect

7 - Left LF-In

8 - LF-In ground shielding

9 - CVBS cable (+)

10 - CVBS cable (-)

11 - iPod data

12 - iPod data

Audi Q5. A91-11788

D - Black 8-pin connector (T16q)

10 - Data from Multimedia System Control Head -E380-

11 - Data to the Multimedia System Control Head -E380-

12 - Terminal 31

14 - Reset from Multimedia System Control Head -E380-

15 - Terminal 30

16 - Ground to Multimedia System Control Head -E380-

Audi Q5. A91-11788

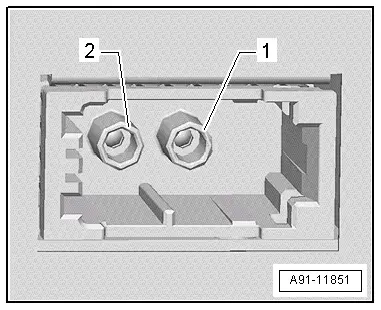

3 - MOST Bus

1 - Input

2 - Output

Audi Q5. A91-11851

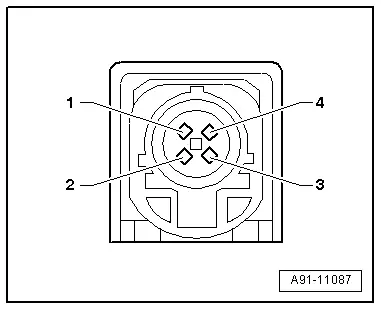

5 - Purple 4-pin connector (T4al)

All pins are connected to the Front Information Display Control Head -J685-.

1 - LVDS (-)

2 - Not Assigned

3 - LVDS (+)

4 - Ground

Audi Q5. A91-11087

6 - 4-pin connector (T4ap)

All pins are connected to the External Audio Source Connection -R199-.

1 - D (+)

2 - iPod recognized

3 - D (-)

4 - Ground

Audi Q5. A91-11087
