Removing

- Open the front glass panel all the way.

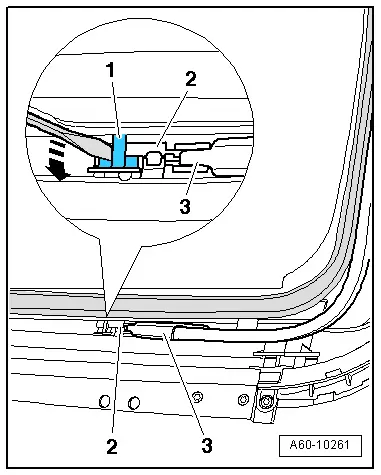

- Unclip the circlip -1- above the mounting bracket -2- for the wind deflector -3- using a screwdriver.

Audi Q5. A60-10261

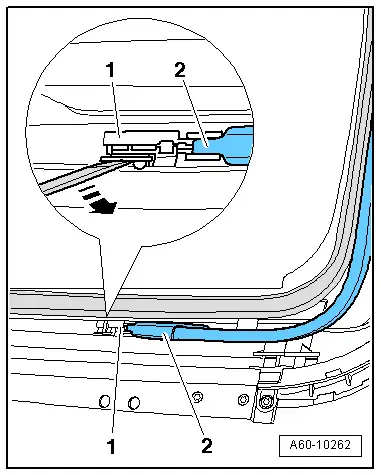

- Unclip the wind deflector mounting bracket -1--2- with a screwdriver.

Audi Q5. A60-10262

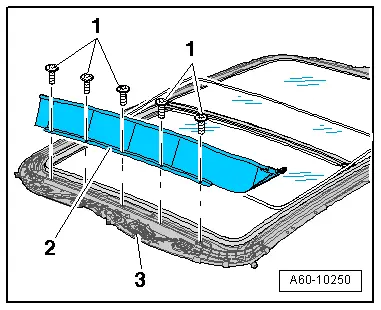

- Remove the screws -1- on the wind deflector -2-.

- Remove the wind deflector upward from the frame -3-.

Installing

Install in reverse order of removal.

- Tighten the bolts to 2 Nm when installing.

  Note

  • The wind deflector bracket must audibly engage.
  • Always replace the brake clips after it has been disassembled.

Audi Q5. A60-10250

Wind Deflector Bearing, Removing and Installing

Removing

- Remove the wind deflector. Refer to → Chapter "Wind Deflector, Removing and Installing".

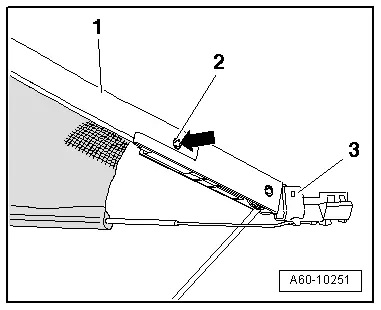

- Remove the mounting pin -2- from the upper screen frame -1- and the wind deflector bearing -3-.

Audi Q5. A60-10251

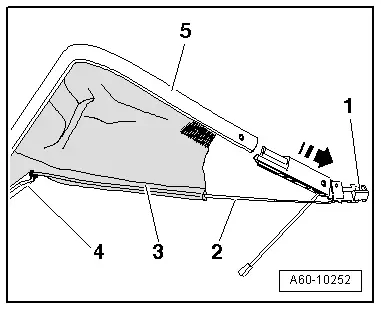

- Remove the wind deflector bearing -1- in direction of -arrow- from the upper screen frame -5-.

- Remove the tensioning wire -2- from the lower screen frame -4- and from the screen -3-.

Audi Q5. A60-10252

Installing

- Insert the tensioning wire -2- through the screen -3- and into the lower screen frame -4-.

Install in reverse order of removal.

Install a new mounting pin to secure the wind deflector bearing.

- Install the wind deflector. Refer to → Chapter "Wind Deflector, Removing and Installing".

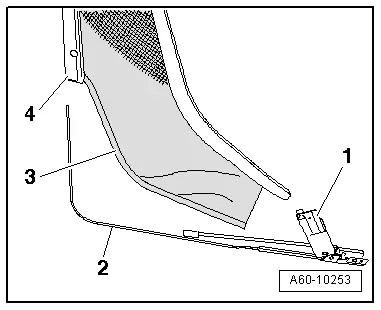

Audi Q5. A60-10253

Glass Sunroof Panel Seals, Replacing

Special tools and workshop equipment required

  • Roller -3356-
  • Adhesive Strip Remover -VAS6349-

- Remove the rear glass panel. Refer to → Chapter "Rear Sunroof Panel, Removing and Installing".

Replace the front seal and the inner seal.

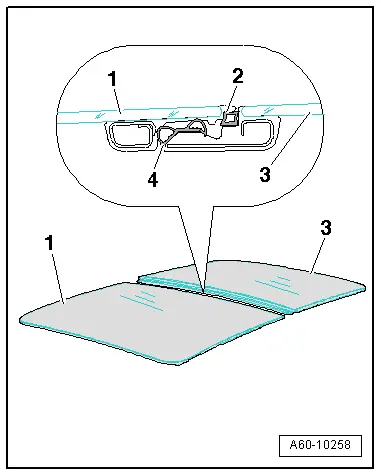

- Remove the seal from the rear glass panel -1-.

  • 1 - Front cover
  • 2 - Front seal
  • 3 - Rear cover
  • 4 - Inner seal

Audi Q5. A60-10258

- Remove any adhesive residue with Adhesive Strip Remover -VAS6349-.

- The adhesion surface on the rear glass sunroof panel must be free of dust and grease.

- Clean the adhesive surface thoroughly with Cleaning Solution -D 009 401 04-.

- Wipe down the surfaces on the rear glass panel with the supplied primer towel.

  Note

Pay attention to the drying time of the primer towel.

- Remove the protective film from the adhesive strip on the new seal and press on both corners of the seal.

- Press seal on evenly to prevent any excess length.

- Press on the seal evenly using the Roller - 3356-.

- Install the rear glass panel. Refer to → Chapter "Rear Sunroof Panel, Removing and Installing".

Replacing the side seal

- Remove the side seal -2- from the rear glass panel profile -1-.

- Remove any remaining adhesive residue with Adhesive Strip Remover -VAS6349-.

- The adhesion surface on the rear glass sunroof panel must be free of dust and grease.

- Clean the adhesive surface thoroughly with Cleaning Solution -D 009 401 04-.

- Wipe down the surfaces on the rear glass panel with the supplied primer towel.

  Note

Pay attention to the drying time of the primer towel.

- Pull of the protective film from the adhesive strip on the new seal.

Audi Q5. A60-10246

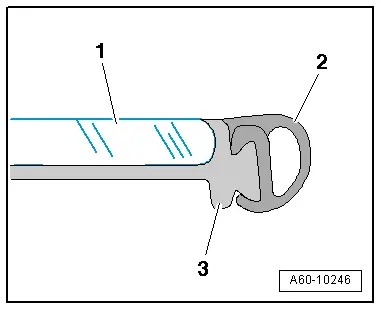

- Press the seal -2- and mount -1- onto the glass panel -3-.

- Press the seal onto both ends.

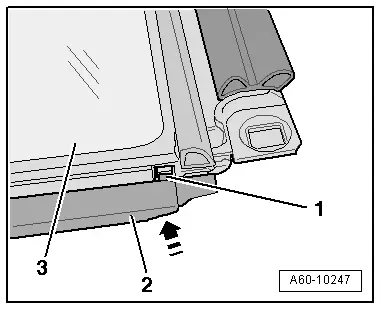

Audi Q5. A60-10247

- Press the seal -2- into the glass panel profile-1- evenly to prevent any excess length.

- Press the seal evenly all around with the Roller -3356-.

- Install the rear glass panel. Refer to → Chapter "Rear Sunroof Panel, Removing and Installing".

Audi Q5. A60-10247
